Buffer

$79.00
Current Stock:
SKU:
RPL-107
Shipping:
Calculated at Checkout
Size:
2" x 1.5" x 1.2"
Input impedance:
1 MΩ
Output impedance:
< 1 kΩ
Frequency response (± 3 dB):
20 Hz - 40 kHz
Signal-to-noise ratio:
90 dB
Power:
9-18 VDC, center negative
Current:
20 mA

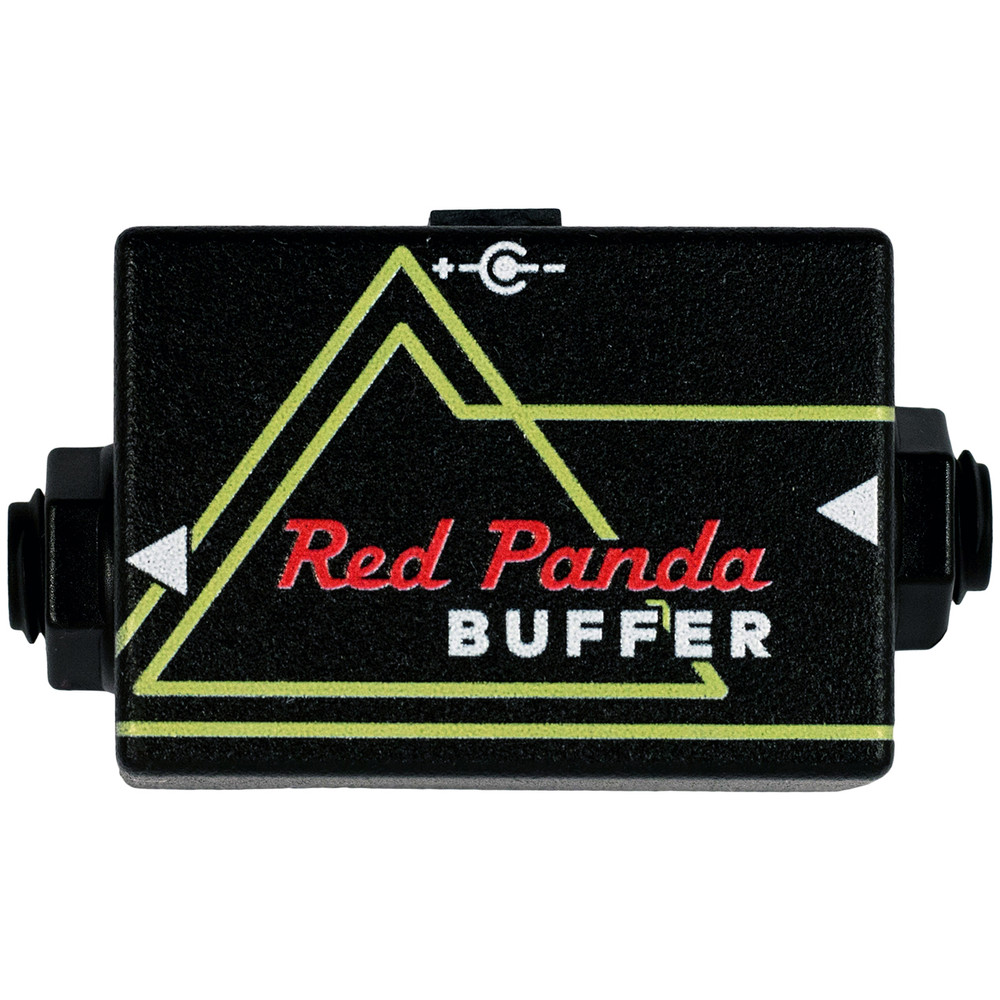

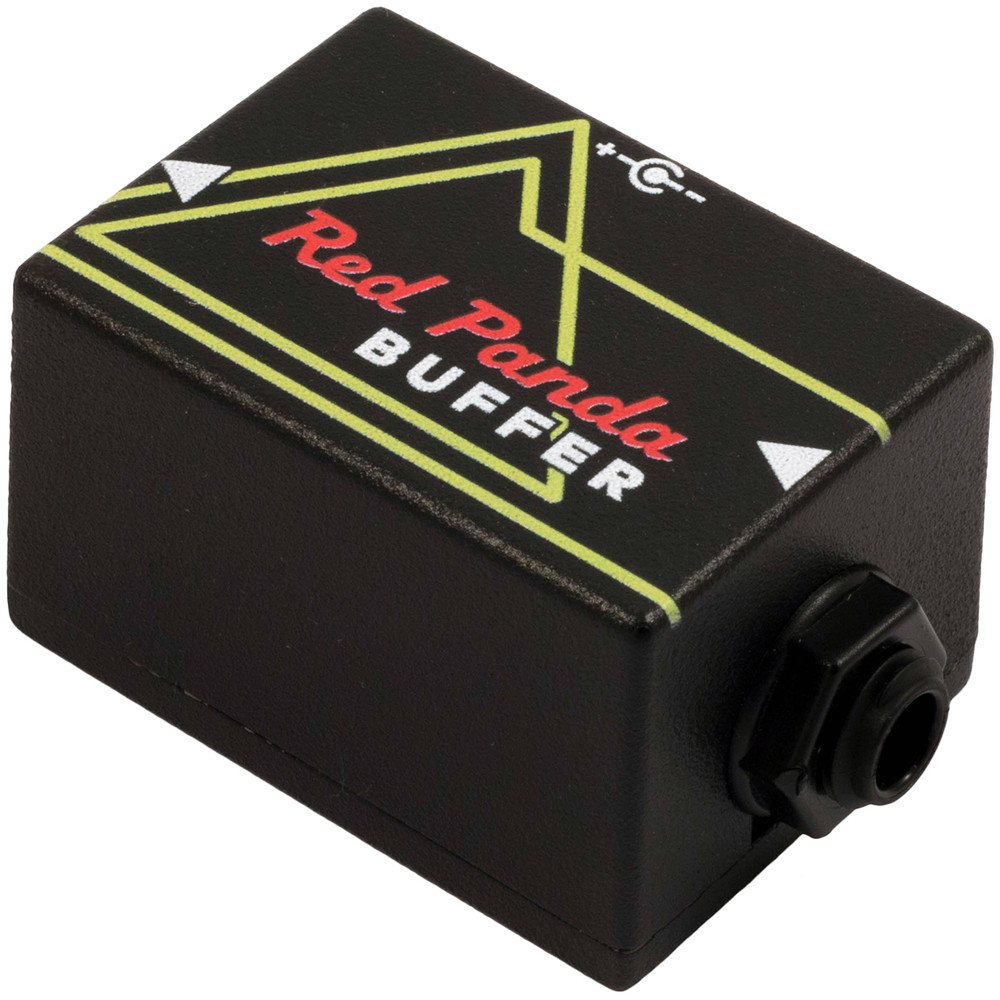

The Bit Buffer is a tiny (2” x 1.5”) buffer that uses an ultra-low distortion, low-noise Burr-Brown op amp. Place it at the beginning of your pedal chain to prevent high-frequency loss (tone suck), or right before a long cable to a pedalboard or amp.

The Bit Buffer is always on when power is connected. An internal LED is visible below the power jack.
