blend chop pitch fdbk param modes preset freezing bypass

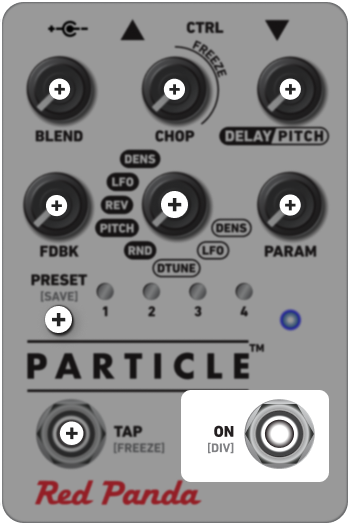

ON

Tap for latching ON/OFF.

If Particle is in bypass, you can hold the switch for a momentary ON.

If Particle is ‘ON’, holding the switch activates the [DIV] menu, which allows you to use the onboard controls to set divisions for different parameters and access additional features, such as a tone control or stereo spread.

Use the web editor, TouchOSC, or MIDI to choose from a variety of bypass modes to change how the effect is applied:

DSP (default) Dry signal and bypass pass through DSP. Particle uses studio-quality A/D and D/A converters with low latency.

ANALOG Dry signal passes through DSP when effect is on, and through buffered analog signal path in bypass.

ANALOG + FX LEVEL Dry signal passes through a unity-gain analog signal path.

KILL DRY Dry signal is always muted. The BLEND knob acts as an effect level control, but keeps the same response as other modes.
