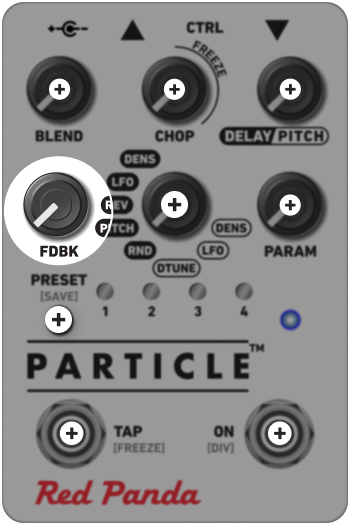

FDBK

Adjusts audio feedback (repeats).

There are different feedback modes which can be set using the web editor or MIDI:

RECYCLE The output signal is fed back to the input of the granular engine, causing it to be repeatedly processed, resulting in stacked pitch changes, arpeggiator, shimmer, or organ sounds. This is the default in all modes except DELAY+DENS.

PING PONG RECYCLE Recycle, but with the left and right channels swapped on each repeat.

POST DELAY The output signal is fed into a separate delay line with feedback, causing the repeats to decay naturally. This is the default in the DELAY+DENS mode.

POST DELAY PING PONG Post delay, with the left and right channels swapped on each repeat.

REPEAT # Each grain repeats 0-8 times, based on the FDBK knob position. The CHOP knob controls the length of sound repeated.

REPEAT # / % Each grain may repeat from 0-8 times, based on the FDBK knob position. On each count, there is a 12-50% chance of repeating the grain, with an opposing chance of using the live input signal.

FILTER
Hold ON [DIV] and adjust FDBK to brighten or darken the repeats.
